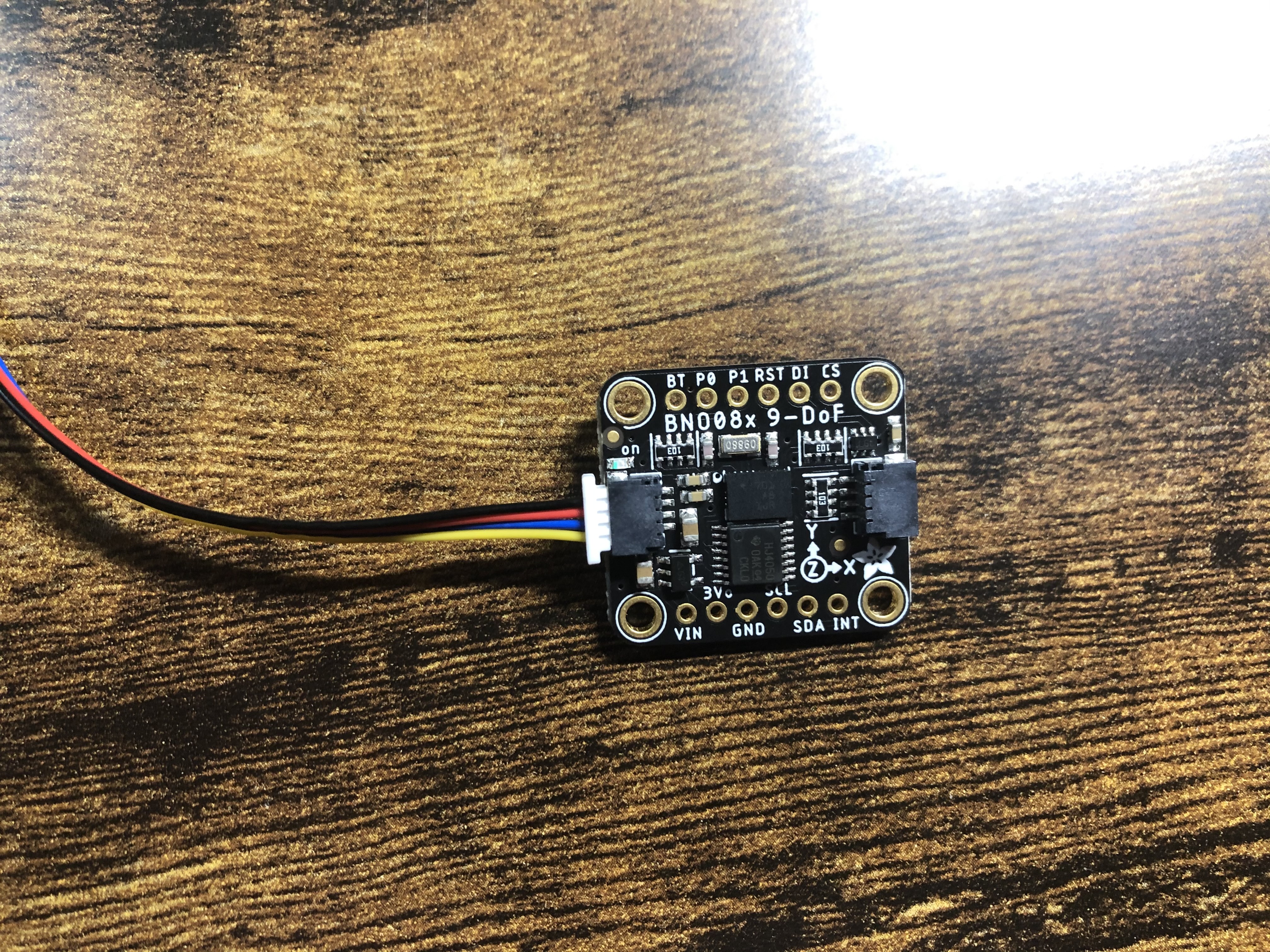

// Sketch for reading the Euler angles from the BNO085, and change drone motors ** Credits to ES 50 Lab 6

#include <Adafruit_BNO08x.h> // Include this line to be able to use the Adafruit_BNO08x.h library

#define BNO08X_RESET -1

Adafruit_BNO08x  bno08x(BNO08X_RESET); // Initialize the BNO08x object that we will use to read the IMU
sh2_SensorValue_t sensorValue; // Create the variable that will store the incoming sensor data from the IMU
float eulerAngles[3]; // Create an array for storing the angles around each axis: index 0 for x (roll), 1 for y (pitch), 2 for z (yaw)

int EN5 = 5;                 // Motor Pin
int EN4 = 4;                 // Motor Pin
int EN3 = 3;                 // Motor Pin
int EN2 = 2;                 // Motor Pin

void setup()

{
  pinMode(EN5, OUTPUT);   // where the motor is connected to
  pinMode(EN2, OUTPUT);   // where the motor is connected to
  pinMode(EN3, OUTPUT);   // where the motor is connected to
  pinMode(EN4, OUTPUT);   // where the motor is connected to

  Serial.begin(115200);

  Serial.println("Adafruit BNO08x test!");

  // Attempt to initialize the BNO085, if it fails enter an infinite loop
  if (!bno08x.begin_I2C()) {
    Serial.println("Failed to find BNO08x chip");
    while (1) {
      delay(10);
    }
  }
  Serial.println("BNO08x Found!");

  // See definition of setReports() below
  setReports();

  Serial.println("Reading events");
  delay(100);
}

void setReports(void) {
  Serial.println("Setting desired reports");
  if (! bno08x.enableReport(SH2_GAME_ROTATION_VECTOR)) {
    Serial.println("Could not enable game vector");
  }
}


void loop() {
  delay(10);

  // This if statement just checks every loop if the sensor was reset,
  // which can be useful if the sensor is ever disconnected accidentally.
  // In that case, this if statement will be entered and the reports will be re-initialized
  if (bno08x.wasReset()) {
    Serial.print("sensor was reset ");
    setReports();
  }

  // This checks if the values stored in sensorValue have been updated
  if (! bno08x.getSensorEvent(&sensorValue)) {
    return;
  }

  // This if statement checks if the sensorValue that has been updated
  // is the game rotation vector
  if (sensorValue.sensorId == SH2_GAME_ROTATION_VECTOR) {
      toEuler(eulerAngles, sensorValue);

// ******* STUDENT CODE ************

      Serial.print("roll:");
      Serial.print(eulerAngles[0]);
      Serial.print(" pitch:");
      Serial.print(eulerAngles[1]);
      Serial.print(" yaw:");
      Serial.println(eulerAngles[2]);

// ********* If roll or yaw is over 80 deg or less than -80 deg spin specific motors
// ********* For some reason the pitch readings were very unreliable

      if (eulerAngles[2] > 80) {
          analogWrite(EN4,0);      //sets the motors speed
          analogWrite(EN2,100);
          analogWrite(EN3,0);
          analogWrite(EN5,0);
          delay(250);
      }
      if (eulerAngles[2] < -80) {
          analogWrite(EN4,0);      //sets the motors speed
          analogWrite(EN2,0);
          analogWrite(EN3,100);
          analogWrite(EN5,0);
          delay(250);
      }
      if (eulerAngles[0] > 80) {
          analogWrite(EN4,100);      //sets the motors speed
          analogWrite(EN2,0);
          analogWrite(EN3,0);
          analogWrite(EN5,0);
          delay(250);
      }
      if (eulerAngles[0] < -80) {
          analogWrite(EN4,0);      //sets the motors speed
          analogWrite(EN2,0);
          analogWrite(EN3,0);
          analogWrite(EN5,100);
          delay(250);
      }

  }
}

void toEuler(float * angles, sh2_SensorValue_t quat) {
  float w = quat.un.gameRotationVector.real;
  float x = quat.un.gameRotationVector.i;
  float y = quat.un.gameRotationVector.j;
  float z = quat.un.gameRotationVector.k;
  float rawAngles[3] = {0, 0, 0}; // angles in radians

  float sqw = w * w;
  float sqx = x * x;
  float sqy = y * y;
  float sqz = z * z;

  rawAngles[2] = atan2(2.0 * (x*y + z*w), (sqx - sqy - sqz + sqw));
  rawAngles[1] = asin(-2.0 * (x*z - y*w) / (sqx + sqy + sqz + sqw));
  rawAngles[0] = atan2(2.0 * (y*z + x*w), (-sqx - sqy + sqz + sqw));

  for (int i = 0; i < 3; i++) {
    angles[i] = rawAngles[i] * (180.0/PI); // convert from radians to degrees
  }
}
